3RH1911-1FC22

3RH1911-1FC22

  • $57.60
    Unit price per

In stock, can ship today!

717-209-7100



Call to Order 717-209-7100
Same Day Shipping

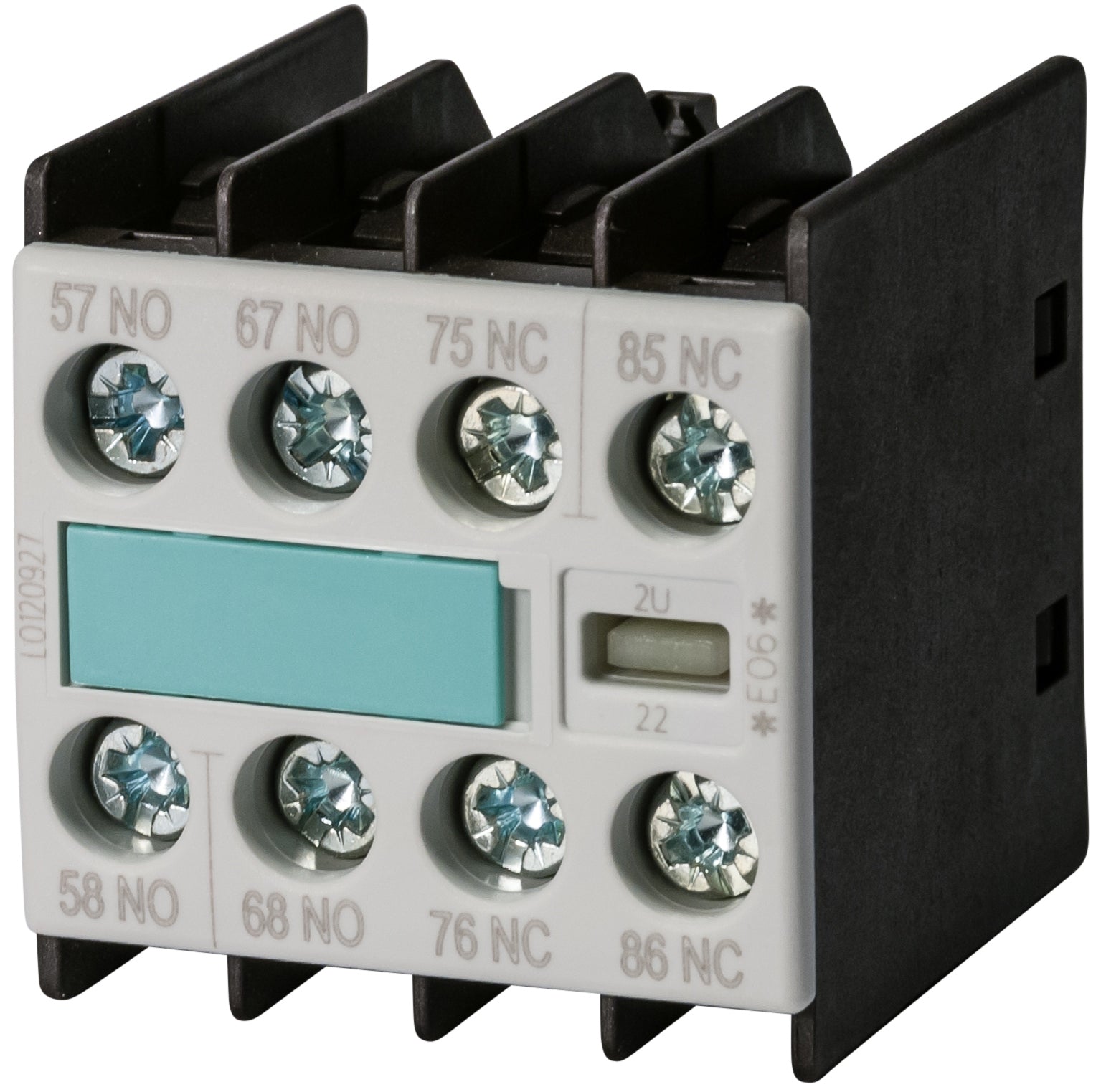

3RH1911-1FC22 Siemens Auxiliary Contact Block

The Siemens 3RH1911-1FC22 is a
snap on front mount auxiliary
contact block with 2NO and 2NC overlapping
contacts. (Early Make/Late Break)
Identification No. 22 / 2U
Conforms to IEC 60947-5-1

Price List
Options listed below

For Use With:

pdfpicView Data Sheet

3RH1911-1FC22 Auxiliary Contact Block


Selection Chart:

Mechanical Service Life Identification
No.
Operating Current at AC-15 Auxiliary
contacts
Catalog No.
Switching Cycles 24V 230V 400V 690V Early
Make
Late
Break
10 000 000 22 / 2U 6 6 3 1 2 2 3RH1911-1FC22

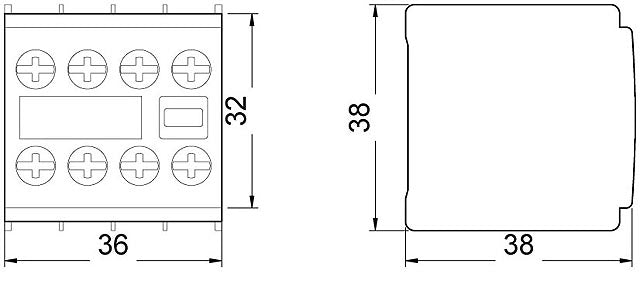

3RH1911-1FC22 Dimensions
