Moeller Electric xStart DIL1AM > DILM40	Special Pricing Available for Dealers and Service/Repair Firms

Nationwide order desk and technical support:

Replacement notes: The original Klockner Moeller DIL1AM series is replaced by Moeller Electric's new DILM40 series. The DILM40 is a good replacement and is a bit smaller than the original. The mounting holes do not line up. A little extra depth is needed. Moeller also offers the new plug-in overloads series ZB65 to fit the new DILM40.
DILM40 Contactor Selection Chart: Always specify coil voltage.
3-Phase Motor Horsepower	Cont. Amps	Built-In Auxiliary Contacts	Catalog # Old / New
10 hp @ 200 V 15 hp @ 230 V 30 hp @ 460 V 40 hp @ 575 V	55	-	DIL1AM DILM40
Click here for:          pricing         auxiliary contact blocks         plug-in overload relays

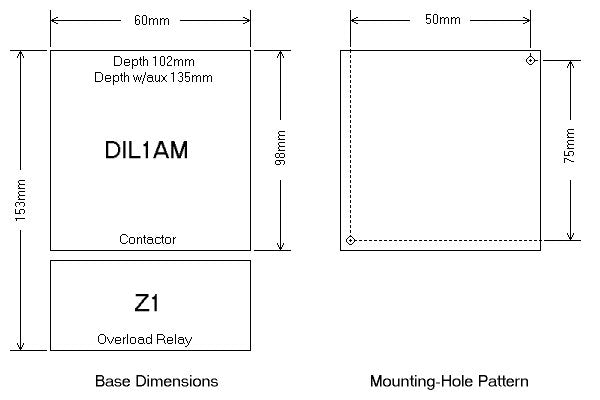

Original DIL1AM:

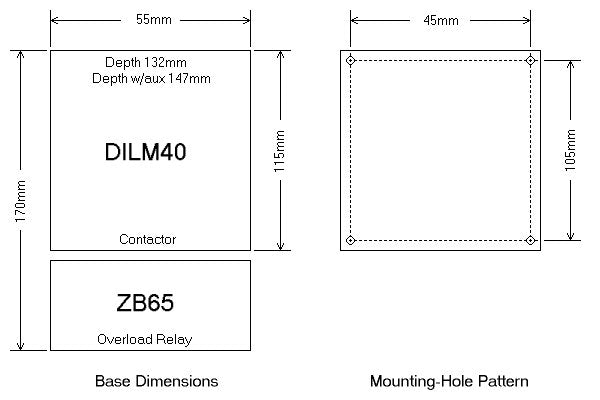

New DILM40:
